HVAC Product Catalog - Navigator®

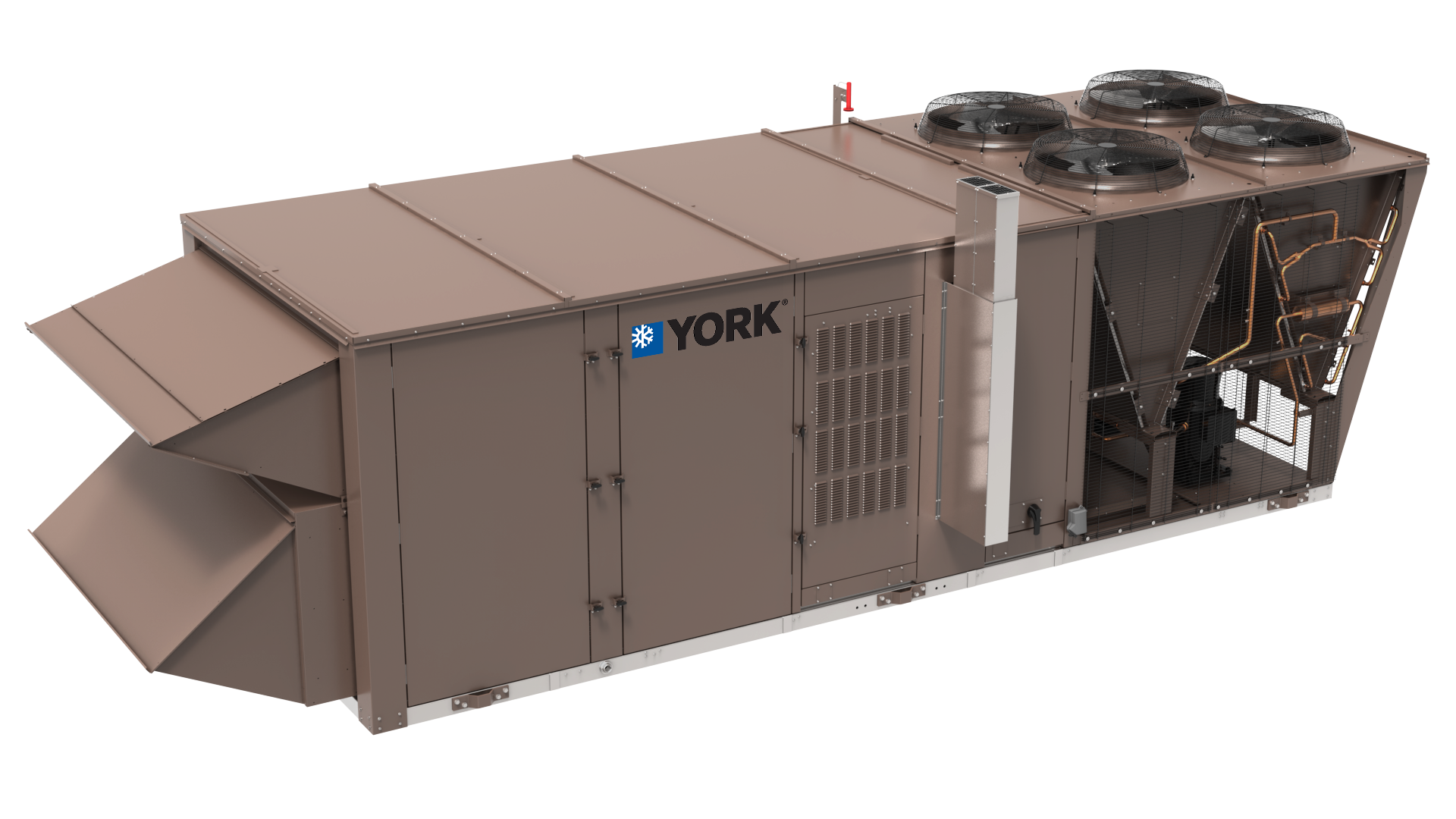

York® Sun™ Select Rooftops 27.5-50 tons


YH/YV 27.5 - 50 Ton SunSelect Packaged Unit
York - Residential

The York® Sun­­™ Select rooftop units are leading the way in comfort cooling!

The Select rooftop family provides the most economic comfort cooling available in a 27.5 to 50 ton platform. The base model delivers remarkable performance in the form of high part load efficiency, greater flexibility through extensive factory and field installed options and a unique competitive replacement capability, and peace of mind from knowing each unit has been developed with York's design principles centered on quality and reliability.



Filter By
Type
Category
File Type
Category Title Type File Type Action
Refrigerant:
R410A
System Type:
Air Conditioners
Application Type:
Replacement
Application Type:
New Construction
Product Line:
Select 27.5-50 ton RTU
Descriptor A:
Descriptor B:
Product Type:
Equipment Type:
Certification:
Competitor:
Competitor Product:
Region:
JCI Product:
Nominal Capacity:
27.5 - 50 tons
Efficiency Rating:
10.4 - 11.1 EER 11.4 - 13.3 IEER w/ CV 13.8 - 15.1 IEER w/ IntelliSpeed 14.6 - 16 IEER w/ VAV
Heat Exchanger:
10 yr
Parts:
1 yr
Commercial
Manufactured Housing
Residential
Remarkable Performance:
With a design focused on maximizing part load efficiency, the Select rooftop unit provides IEERs that exceed the US Department of Energy (DOE) 2018 federal minimum efficiency requirements by up to 39% and already exceed the DOE 2023 requirements by up to 22%. A best in class offering of four airflow options allows the product to be configured to meet your precise needs, whether that is an entry level base model with standard efficiency and simple start up and commissioning or a highly optioned model with higher efficiency requirements and job specific options and accessories.  All Select YH and YV models are of a two circuit design with the selected airflow/refrigeration option dictating the number of cooling stages. The base constant volume airflow design and the higher efficiency two stage IntelliSpeed option operate with two cooling stages while the Variable Air Volume and four stage IntelliSpeed* options each operate with four stages of cooling.

Greater Flexibility
With our complete offering of factory installed options and field installed accessories, the Select rooftop family will be able to fit a wide range of applications from the most simplistic replacement job to the highly specified new construction application.  The Select product has the ability to replace the Trane Voyager 3 product family without the need for a costly transition curb. Leading our range of specifiable capabilities is our collection of modulating options. When it comes to performing at the highest level, systems with the ability to monitor conditions and adjust performance accordingly lead the way.  We offer modulation of many systems within the Select product.

Supply airflow - two stage or four stage IntelliSpeed and Variable Air Volume (VAV)
Heating - modulating gas heat* up to an 8 to 1 turndown
Power Exhaust - modulation of exhaust fans focused on maintaining static pressure set point for the space
Humidity Control - modulating Hot Gas Reheat*

Peace of Mind:
The Select product platform has been designed under our Design for Quality principles and utilizing the latest proprietary advances in unit and system modeling technology.  Reliability is assured through rigorous life-cycle testing of critical assemblies and extensive Finite Element Analysis (FEA) reviews. Designed and tested in the brand new Advanced Technology Lab and manufactured in our state-of-the-art Rooftop Center of Excellence, the Select product is designed, engineered, and assembled in Norman, Oklahoma.

*Available later in 2020
